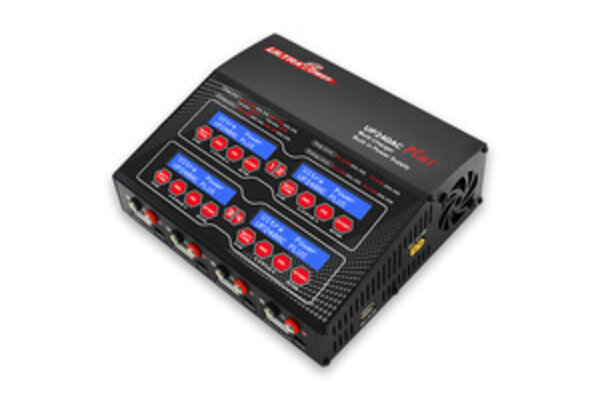

UP240 AC PLUS 240W 4-PORT Multi-Chemistry AC/DC Charger

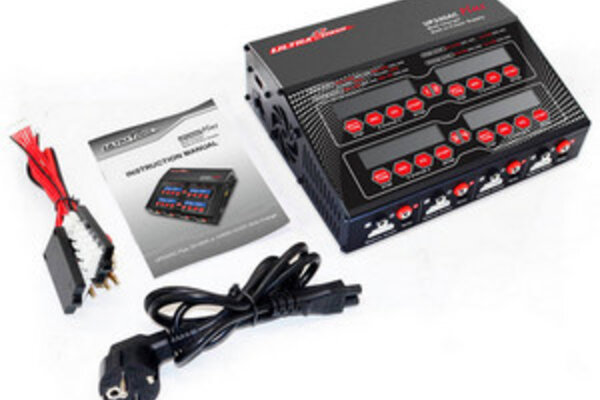

For hobbyists with multiple models, the Ultra Power 240AC Plus provides the ability to charge four batteries simultaneously. This powerhouse distributes 240 watts over 4 channels, with a maximum of 120 watts from any one channel. Features include: selectable charge termination voltage, adjustable delta-peak (NiCd/NiMH), individual cell balancing, battery meter function, data storage (10 profiles in memory), and a USB port for firmware upgrades or charging phones or tablets. Includes T-plug charge leads (2) and XH balance boards (2) and covered by Ultra Power's unconditional 1-year exchange guarantee.

Specifications:

• Input Voltage: AC 100-240V, DC 11-18V
• Charge Power: 2 x 120W or 4 x 60W
• Power Distribution: CH1+CH3=120W, CH2+CH4=120W
• Discharge Power: 2 x 10W or 4 x 5W
• Charge Current: 0.1-12A (CH1, CH2), 0.1-6A (CH3, CH4)
• Discharge Current: 0.1-5A (CH1, CH2), 0.1-2A (CH3, CH4)
• LiPo/Li-ion/LiFe/LiHV cells: 1-6
• NiCd/NiMH cells: 1-15
• Pb cells: 1-10
