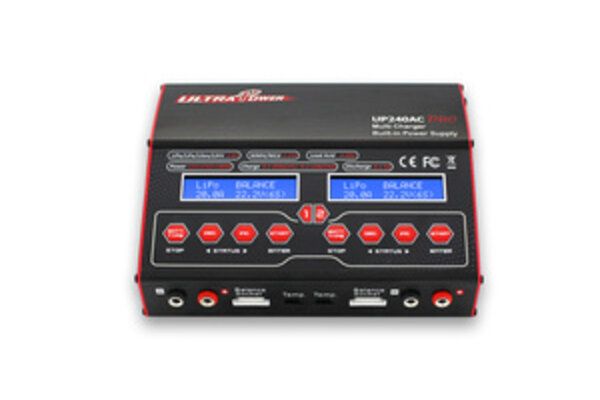

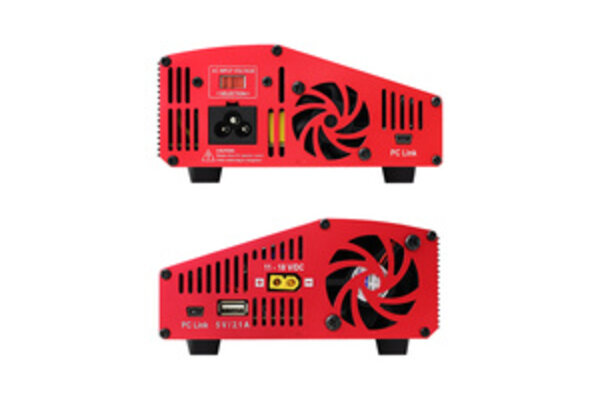

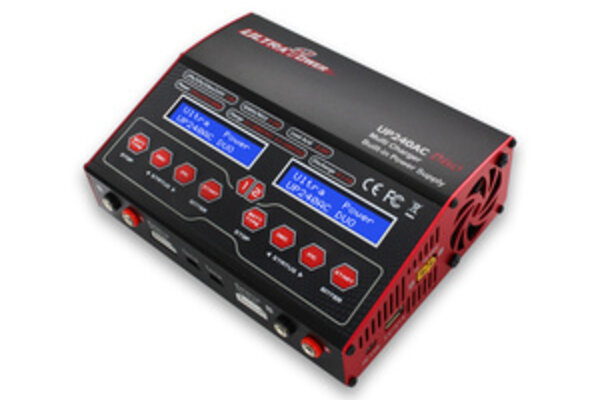

The UP240ACDUO packs a whopping 20A charge rate into an AC charger, ideal for advanced pilots or drivers that require a big push for big batteries. Features include: selectable charge termination voltage, adjustable delta-peak (NiCd/NiMH), individual cell balancing, battery meter function, data storage (10 profiles in memory), and a USB port for firmware upgrades or charging phones or tablets. Includes T-plug charge leads (2) and XH balance boards (2) and covered by Ultra Power's unconditional 1-year exchange guarantee.

Specifications:

• Input Voltage: AC 100-240V, DC 11-18V
• Charge Power: max 240W (CH1), max 120W (CH2)
• Power Distribution: CH1+CH2=240W
• Discharge Power: max 25W (CH1), max 10W (CH2)
• Charge Current: 0.1-20A (CH1), 0.1-12A (CH2)
• Discharge Current: 0.1-5A
• LiPo/Li-ion/LiFe/LiHV cells: 1-6
• NiCd/NiMH cells: 1-15
• Pb cells: 1-10
