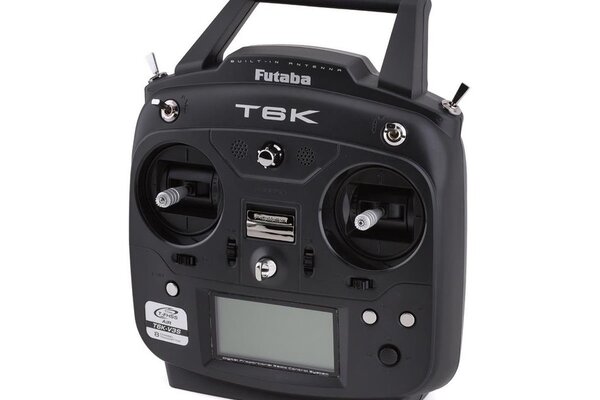

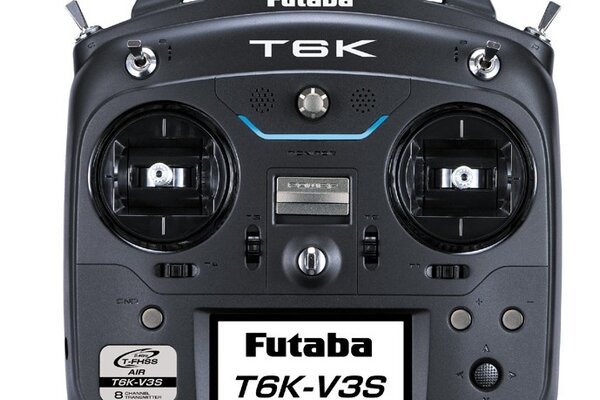

The Futaba 6K 2.4GHz V3S FHSS/T-FHSS Radio System is one of the most feature packed transmitters in its price range. Featuring telemetry sensors to monitor critical flight data, S.Bus and S.Bus2 servo compatibility, with setting functions that can be programmed directly from the transmitter. Ergonomic controls are within easy reach, and the menu navigation is simple. The updated 6K V3S model has added more functions for gliders. Wing type 2AIL-B, trim mixing for rudder and more conditions have been added. The V3S model also allows for the user to adjust the heli governor speed settings through the transmitter using channel 7. When you consider other features like four 3-position switches, 30 model memory, a backlit 128x64 DOT LCD screen and updateable software, it's easy to see why the 6K V3S is a lot of radio for the money.

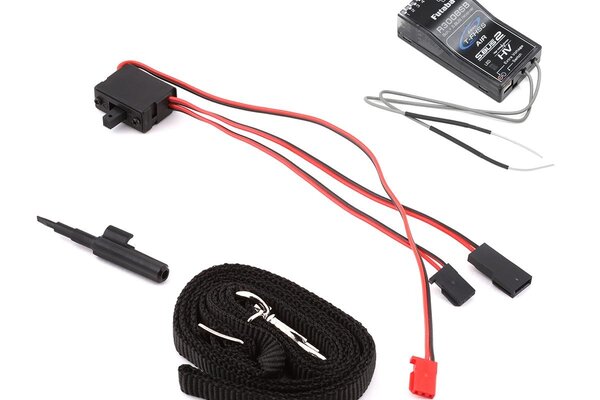

The R3008SB receiver can use S.Bus as the main link/communication to the servos or a combination of S.Bus and the conventional outputs together. It features 8 standard PWM outputs in addition to S.Bus and S.Bus-2 outputs. Features bi-directional communication with a T-FHSS Air Futaba transmitter using the S.BUS2 port. Using the S.BUS2 port will allow for an impressive array of telemetry sensors to be used.
NOTE: Model data from the 6K V3S cannot be transferred to older 6K models, however, model data from older 6K models may be transferred to the 6K V3S.
System Features:
- S-FHSS/T-FHSS selectable
- Telemetry system (T-FHSS) with data speech function for monitoring receiver battery voltage, external voltage, temperature, RPM, altitude and variometer
- Built-in antenna
- S.Bus/S.Bus2 servo setting functions programmable through the transmitter
- Preset vibration alarms
- 30 model memory
- Programmable mixes for airplanes, helicopters, gliders and multi-rotors
- Digital trims with variable step settings
- Adjustable stick length and tension
- Changeable switch/VR position and AUX channel function
- Throttle position warning
- Backlit 128x64 DOT LCD screen with adjustable display contrast
- Software updateable through the CIU-2
- Screen Lock
- Earphone/S.Bus/Trainer jacks
- Assignable switches (four 3-position)
- Range Check
- Program navigation bay with jog dial, +/- pads and end pad
- Data reset
- Model copy
- Selectable model type
- Fail Safe
- End Points
- Trim/Trim Resets/Trim Steps
- Sub Trim
- Servo Reversing
- Parameter functions
- Servo monitor/Test
- Wireless model data transfer
- Two Timer-Systems (Up/Down)
- Trainer system
Airplane Functions:
- Wing Type (5-wing, 2-tail)
- 2AIL-B wing type for non-powered gliders
- Throttle Cut
- Dual Rate/Expo
- Throttle Curve
- Idle down
- Gyro
- Aileron differential
- V-Tail
- Trim mixing for rudder
- 4 Glider conditions
- Camber
- Air Brake
- Elevator-to-Flap mixing
- Flap-to-Elevator mixing
- Elevon mixing
- Ratcheting throttle stick motion
Specifications:
- Transmitter:
- Frequency: 2.4GHz
- Type: 2-stick, 6-channel, T-FHSS/S-FHSS selectable
- Power Supply: Optional 6V Nimh's or 6.6V Lithium (LiFe) batteries
- RF Power Output: 100mW
- R3008SB Receiver:
- Model: R3008SB 2.4GHz T-FHSS + S.Bus
- Type: Full-range flight receiver
- Modes: T-FHSS
- Features: bi-directional communication with a T-FHSS transmitter to utilize an array of telemetry sensors, S.Bus and S.Bus2 ports, along with 8 standard PWM outputs
- Voltage Input: 4.8V-7.4V
- Dimensions: 0.98x1.86x0.56" (24.9x47.3x14.3mm)
- Weight: 0.36oz (10.1g)
- Stock #: FUT01102204-3
