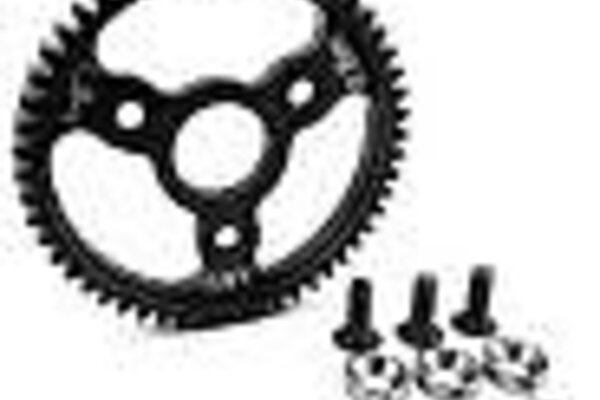

This is the Hot Racing Steel 32 Pitch, 53 Tooth Spur Gear with grey hardware for the 1/10 Traxxas E-Revo, Jato 3.3, T-Maxx 3.3, T-Maxx 2.5R, Summit, Rally VXL, Slash 4X4, and Stampede 4X4.
Features:
- CNC machined and lightened hardened steel construction
- Black oxide coating for durability and corrosion resistance
- Grey-colored countersunk washers
Specifications:
Number of Teeth: 53
Gear Pitch: 32 pitch (0.8 module)
Mounting Holes: 3
Tooth Face width: 6mm (0.24 inch)
Internal diameter: ~11mm (~0.43 inch)
Includes:
- 54 tooth 32 pitch spur gear
- (3) mounting screws
- (3) grey-colored countersunk washers
- (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur mounting plate)
Requires:
- Hardened clutch bell or pinon gear
- Requires a slipper transmission. Will NOT work with vehicle equipped with a center gear differential. Use Hot Racing SSLF2 series gears for vehicles equipped with a center gear differential.
