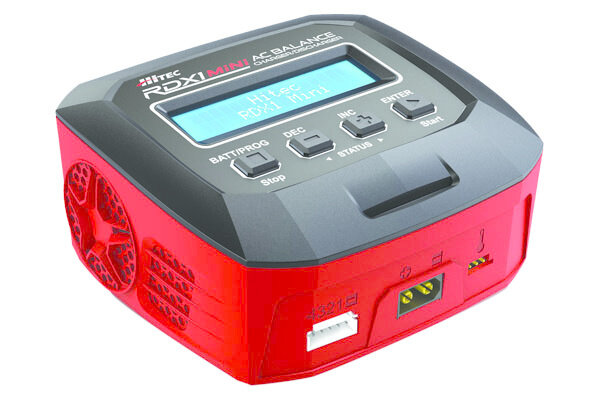

Expanding on the popularity and superior performance of the RDX1 charger line, this is the AC input, micro processor RDX1 Mini. Hitecs sleekly-designed, compact AC charger packs 65 watts of power into a fraction of the size of most chargers to meet your battery management requirements. It is compatible with a full range of the most popular battery types, including the new generation LiHV. With 6 amps of maximum charging current and 2 amps of discharging current.
Features:
- User-Friendly LCD Interface
- Stores 10 Different Battery Memory Charge/Discharge Profiles
- Terminal Voltage Control
- Built-in Balance Connector (JST, XT)
- Cell Balancing While Discharging
- Balance, Standard, Fast and Storage Modes for All Lithium Battery Chemistries
- Re-Peak Charge Mode and Delta-Peak Sensitivity for NiMH/NiCd Batteries
- Optional Temperature Sensor for NiCd/NiMH Charging
- Built-in XT60 Connector
- Smart Ventilation Fan
Charging Specifications:
- AC Input: 100-240 Volts AC
- Charge Power: 65 Watts
- Charge Current Range: 0.1 - 6.0 Amps
- Discharge Power: 10 Watts
- Discharge Current Range: 0.1 - 2.0 Amps
- Current Drain for LiPo Balancing: 200mA per Cell
- NiCd/NiMH Battery Cell Count: 6 - 8 Cells
- LiPo/LiHV/LiFe/Lilon Cell Count: 2 - 4 Cells
- Pb Battery Voltage: 6 - 12 Volts
- Dimensions: 4.61 x 4.17 x 2.17 in. (117 x 106 x 55mm)
- Weight: .69 lbs. (315g)
