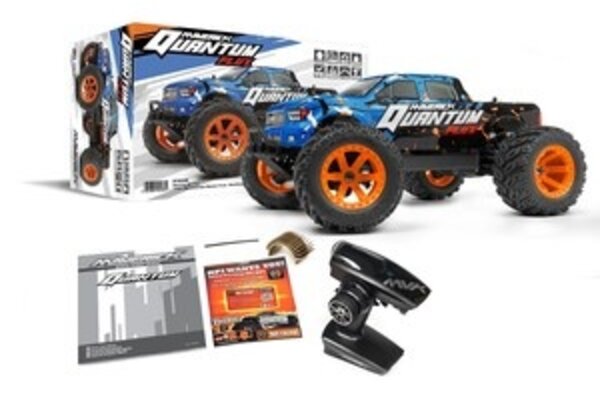

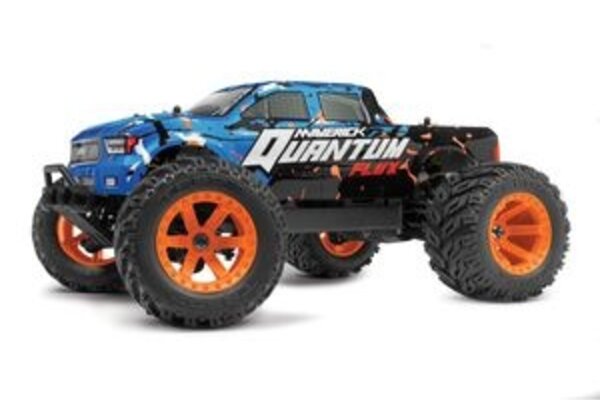

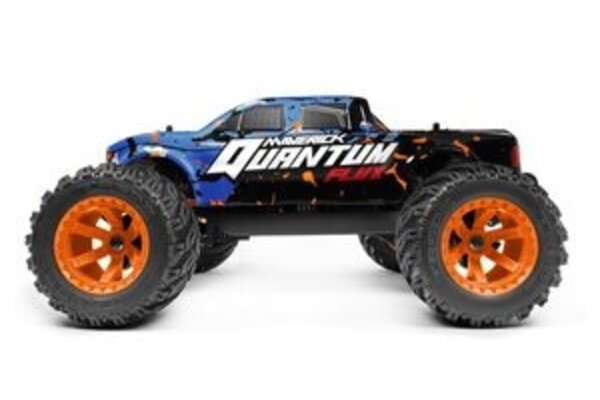

The upgraded Maverick Quantum MT FLUX 80A is a rugged 4WD Shaft-Driven, monster truck with a high ground clearance chassis design and high ride height suspension set up for clambering over any terrain! With independent Double Wishbone Suspension, Oil Filled Adjustable Coilover Shocks and Tough Metal 4-Gear Differentials Front & Rear, no amount of dirt or jumps will stand in your way!

Pushing the boundries of quality and performance further than ever before seen with Maverick brand, the whole range of Quantum kits benefit from a Molded Tub Chassis with Hex Pattern Reinforcement, oversized 2.8" wheel design and an adjustable wheelie bar fitted as standard.

Check out all the upgrades:
UPGRADE: #150231 HD Universal Drive Shafts
UPGRADE: #150232 HD Wheel Axle Shafts
UPGRADE #150238 FLX-3S80 FLUX 80A ESC
UPGRADE Revised Suspension Arms


UNLEASH THE BEAST FOR SOME CRAZY, STUNNING ACTION!
The upgraded Quantum FLUX 80A kits come preloaded with the same great MM-3660-BL 3300KV Brushless Motor complete, with 5.0mm shaft, powering a tough shaft drivetrain spinning all 4 wheels for awesome 4WD action. There's a step up in power with the waterproof 80AMP FLX10-3S80 ESC ready to pump up to 80 amps of power to the motor for amazing stunts, colossal top speeds, and wheel-spinning sideways action!

The waterproof ESC, waterproof receiver, water-resistant servo, and covered spur gear mean the fun keeps coming and water or debris won't stand in your way!

REAL STEERING WHEEL CONTROLLER INCLUDED!
Anyone who has used a Maverick RC vehicle before will tell you that the MTX-244 transmitter makes for a fantastic driving experience with great throttle and steering response. Maverick cut no corners on quality or feel.

All you need is 4 x AA batteries for the transmitter and a LiPo battery of your choice, up to 3S!

TREDZ TIRES BY HPI RACING
The Quantum range features compound, profile and tread patterns that are designed and specified by HPI Racing. Wrapped in high quality, high grip rubber.

ADJUSTABLE WHEELY BAR AS STANDARD!!
When it comes to stunts, jumps and speedruns they've thought of everything with the Quantum family of vehicles. Maverick has pre-installed a sturdy, adjustable wheely bar across the Quantum range. Now you can bust out the longest wheelies on command! Simply pull the trigger and watch it go!

SUPERIOR SUSPENSION FOR SUPERB HANDLING
Featuring independent double wishbone suspension front and rear, oil filled coilover shocks, pillow ball suspension uprights on all four corners, and adjustable steel turnbuckle links, you can drive in any terrain with confidence and complete control.

FEATURES:
4WD shaft drive
HD Front Universal Drive Shafts & Rear Wheel Axle Shafts
Aluminum Hex Hubs
3300KV Brushless Motor with 5.0mm Shaft
Independent Double Wishbone Suspension
Oil Filled Adjustable Coilover Shocks
Pillow Ball Front & Rear Suspension Uprights
Adjustable Steel Turnbuckle Links
Tough Metal 4-Gear Differentials Front & Rear
Gear cover to keep debris away from the spur gear
Dual Point Bell Crank Steering System With Integrated Servo Saver
Molded Tub Chassis with Hex Pattern Reinforcement
High Ground Clearance Chassis Design
Enclosed Receiver Box Protects from the Elements
Complete Set of Ball Bearings
Adjustable Wheelie Bar Included
Oversized 2.8" Wheel Design
Standard 12mm Hex Hub Wheel Fitting
TREDZ High Grip Tires
2.4GHz Radio Set with Waterproof Receiver
80A Waterproof ESC and Water-Resistant Servo
3S LiPo Capable

Specifications:

• Length: 475mm
• Width: 365mm
• Height: 200mm
• Wheelbase: 285mm
• Weight: 2.10kg

Product Manual Exploded View
