  • Protek RC PTK-5116-22   ProTek RC 3S 130C Low IR Si-Graphene + HV Shorty LiPo Battery (11.4V/4800mAh) Crawler Pack w/T-Style Plug
  • Protek RC PTK-5116-22   ProTek RC 3S 130C Low IR Si-Graphene + HV Shorty LiPo Battery (11.4V/4800mAh) Crawler Pack w/T-Style Plug

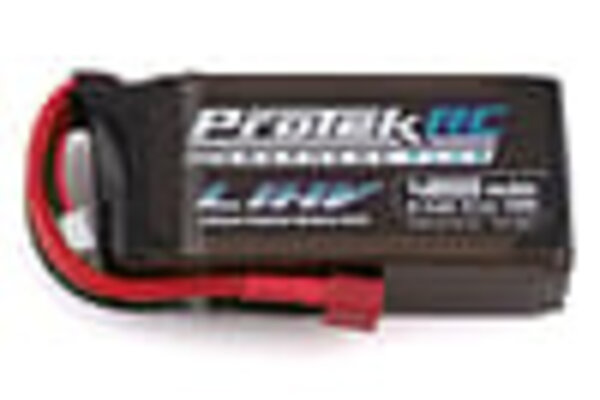

Protek RC PTK-5116-22 ProTek RC 3S 130C Low IR Si-Graphene + HV Shorty LiPo Battery (11.4V/4800mAh) Crawler Pack w/T-Style Plug

SKU: PTK-5116-22
$59.99
Excl. tax

ProTek RC 3S 130C Low IR Si-Graphene + HV Shorty LiPo Battery (11.4V/4800mAh) Crawler Pack w/T-Style Plug

The rating of this product is 0 out of 5

(0)
Out of stock
Add to wish list Add to wish list

ProTek RC 3S 130C Low IR Si-Graphene + HV Shorty LiPo Battery (11.4V/4800mAh) Crawler Pack w/T-Style Plug

The ProTek R/C 3S 130C Low IR Silicon Graphene + HV Shorty LiPo Battery was developed specifically for 1/10 scale rock crawler and rock racer applications. 3S packs that are commonly used in the crawler world are either small, low capacity packs - or large, heavy 4000-5000mAh packs. This 4800mAh battery fills the void and gives scalers a high capacity option that produces more voltage and longer runtimes than a 2200mAh. Plus, when charged at LiHV specs this battery produces 13.05V, instead of the standard 12.6V of a fully charged standard LiPo, meaning performance oriented enthusiasts can take advantage of the light weight, and higher voltage throughout the discharge curve to give them a more consistent power delivery with less fade on the course!

Want more reasons to run this pack? When compared to standard LiPo and LiHV, Silicon Graphene cells deliver improved efficiency, lower operating temperatures, lower internal resistance, better run time, increased cycle life and increased voltage - but Graphene + 130C LiPo batteries take that a step further with lower internal resistance, more power, and 300mAh more capacity when compared to the previous ProTek 3S LiHV!

Lab testing has shown that ProTek R/C Silicon Graphene packs have double the cycle life when charged at 1C rates, and can be charged at higher amp rates, with less risk of damage to the pack. More importantly, the discharge curve is flatter, meaning the cells maintain higher voltage throughout the discharge cycle with no significant drop off. Additionally, when compared to conventional LiPo batteries Silicon Graphene batteries are lighter, providing a higher capacity per gram ratio. With 7.6V nominal voltage, 130C discharge ratings, incredibly high charge rates and ten different models to choose from, ProTek R/C 130C Graphene + packs are perfect for enthusiasts that demand the absolute best.

Features:

  • Comparable weight to a 2200mAh pack, 100g lighter than EcoPower 4100mAh
  • 15 grams heavier than the original LiHV 3600 3S battery, and 900mAh more capacity
  • Great choice for scalers and U4 racers
  • Great choice for pro class 3S drag racing, boats and airplanes too
  • Improved power to weight ratio and a lower overall CG
  • Silicone Graphene can handle more abuse and deliver more current than a standard LiPo battery
  • Improved efficiency, lower operating temperatures, and lower internal resistance!
  • Increased run time, increased cycle life and increased voltage!
  • More capacity gram for gram when compared to standard LiPo cells
  • 10C max charge rates - 1C charge rate recommended for longest life
  • 11.4V nominal voltage
NOTE: While these batteries are technically LiHV cells, they can still be charged with a standard LiPo charger. The overall voltage and capacity will be slightly less than if charged to LiHV specs, but the performance will be better than a standard LiPo thanks to the reduced weight and low internal resistance.





Battery Model HV Shorty 3S LiPo
Application Crawlers, Drag, Boats & Aircraft
Type Silicon Graphene
Voltage 11.4V nominal
Capacity @11.1V
4300mAh
Capacity @11.4V
4800mAh
Weight 245g
Connector Type
T-Style
Balance Connector 4 Pin XH
Number of Cells 3 Cell
Configuration 3S1P
Dimensions (WxLxH) 43x93x25.7mm
Maximum Charge Rate 10C (45A)
Burst Current
130C
Watt Hour @11.4V  54.7Wh



View Manual Icon small Warranty Info Icon small



Includes:

  • (1) ProTek R/C Battery w/T-Style Connector

LITHIUM POLYMER SAFETY INFORMATION

IMPORTANT:
1) DO NOT leave the battery in your model when charging
2) DO NOT leave unattended when charging
3) ALWAYS balance charge the battery
4) ALWAYS use a LiPo charging bag
5) YOU MUST use a Li-Poly specific charger to charge the pack (NiMH or NiCD only chargers WILL NOT WORK!)
6) YOU MUST not over discharge the Li-Poly battery pack
7) READ & UNDERSTAND the instructions carefully before operating this battery

NOTE: When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in over heated batteries. Discharging capacity can't exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell). Do not use the battery that has too low a voltage.

Do not expose batteries to sunshine or store/charge batteries at the temperature above 35°C or in a closed car. The high temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging or racing, do not charge the battery until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.

ProTek RC 3S 130C Low IR Si-Graphene + HV Shorty LiPo Battery (11.4V/4800mAh) Crawler Pack w/T-Style Plug
0 stars based on 0 reviews
Add your review
