PTK-5130-21

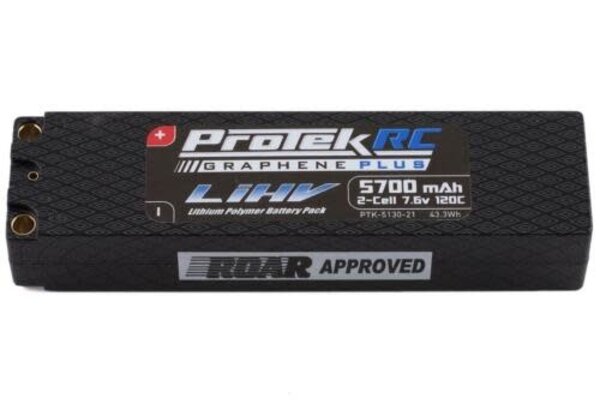

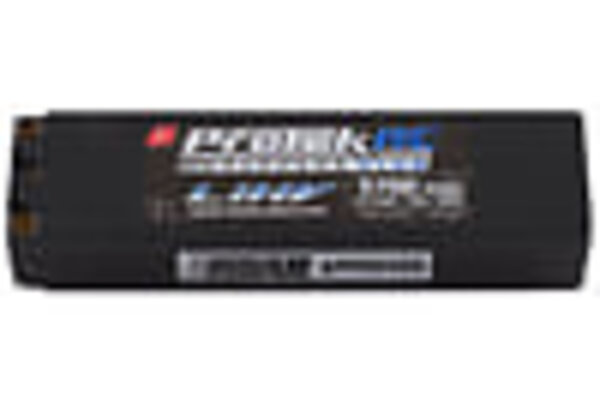

ProTek RC 2S Slim 120C Low IR Si-Graphene + HV LiPo Battery (7.6V/5700mAh) w/5mm Connectors (Pending ROAR Approved)
The ProTek R/C 2S Slim 120C Graphene + HV 5700mAh LiPo Battery is a great battery option for touring car racers looking for a lightweight, high capacity, low cg stick type battery. Weighing 240 grams, this pack is approximately 11mm narrower than a standard stick pack, and ultra lightweight. This provides a more centralized weight bias, with improved power to weight ratio and a lower overall CG.
When compared to standard LiPo and LiHV, Silicon Graphene cells deliver improved efficiency, lower operating temperatures, lower internal resistance, better run time, increased cycle life and increased voltage - but Graphene + 120C LiPo batteries take that a step further with more power and lower internal resistance when compared to the previous ProTek LiHV Graphene packs!
Lab testing has shown that ProTek R/C Silicon Graphene packs have double the cycle life when charged at 1C rates, and can be charged at higher amp rates, with less risk of damage to the pack. More importantly, the discharge curve is flatter, meaning the cells maintain higher voltage throughout the discharge cycle with no significant drop off. Additionally, when compared to conventional LiPo batteries Silicon Graphene batteries are lighter, providing a higher capacity per gram ratio. With 7.6V nominal voltage, 120C discharge ratings, incredibly high charge rates and ten different models to choose from, ProTek R/C 120C Graphene + packs are perfect for racers and bashers that demand the absolute best.
Features:
Battery Model | 2S Slim HV LiPo |
ROAR Approved | Pending |
Type | Silicon Graphene |
Voltage | 7.6V nominal |
Capacity @7.4V |
5300mAh |
Capacity @7.6V |
5700mAh |
Weight | 240 g |
Connector Type |

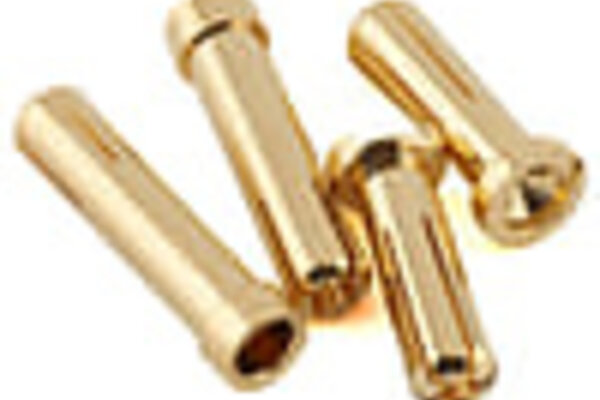

5mm Bullet |
Balance Connector | 2mm Bullet |
Number of Cells | 2 Cell |
Configuration | 2S2P |
Dimensions (WxLxH) | 36.25x139x24.7mm |
Maximum Charge Rate | 10C (57A) |
Burst Current |
120C |
Watt Hour @7.6V |
43.3 Wh |
Includes:
LITHIUM POLYMER SAFETY INFORMATION
IMPORTANT:
1) DO NOT leave the battery in your model when charging
2) DO NOT leave unattended when charging
3) ALWAYS balance charge the battery
4) ALWAYS use a LiPo charging bag
5) YOU MUST use a Li-Poly specific charger to charge the pack (NiMH or NiCD only chargers WILL NOT WORK!)
6) YOU MUST not over discharge the Li-Poly battery pack
7) READ & UNDERSTAND the instructions carefully before operating this battery
NOTE: When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in over heated batteries. Discharging capacity can't exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell). Do not use the battery that has too low a voltage.
Do not expose batteries to sunshine or store/charge batteries at the temperature above 35°C or in a closed car. The high temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging or racing, do not charge the battery until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.
