KYO32890

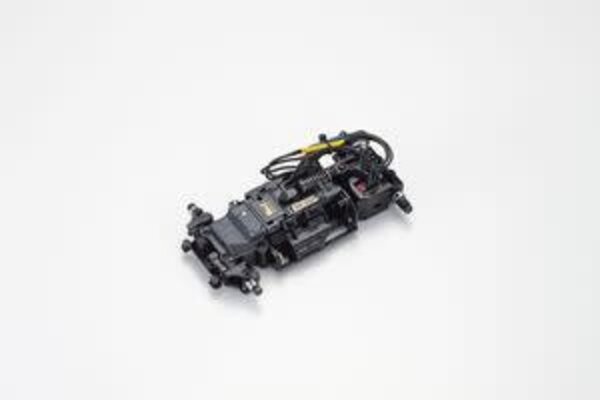

Mini-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)

The 1/27.6 MINI-Z RWD MR-04 features a micro sensored brush motor as its power source, which linearly responds to throttle control from the bottom to top RPM range. The EVO2 main system features super low latency control. Almost everything has been updated from the 14-year-old MR-03!

CHASSIS SET CONTENTS
*Factory-assembled chassis equipped with EVO2 main unit *Painted and marked plastic body shell *Front tread width conversion parts *Pinion Gears (6T, 7T, 8T, 9T) *Pinion gear removal tool *Spare wheel nuts *Wheel wrench

REQUIRED FOR OPERATION
*4 x AAA batteries *Transmitter *Receiver unit (EVO/EVO2) *Auto Scale Collection

TECHNICAL DATA
*Scale: 1/27.6 *Length: 124.5mm *Width: 70.0 - 76.0mm *Height: 31.0mm *Chassis Type: MR-04W-MM *Wheelbase: 98.0mm *Tread: 61.5mm - 65.0mm *Weight: 135.5g w/o body, wheels, tires *8500KV 130 class sensored brushless motor *Gear Ratio: 7.3, 6.3, 5.5, 4.9:1 *Transmitter: not included *Runtime: approx. 35min. (8T pinion/800HV batteries

Features:

• The EVO2 mainboard shortens the latency from 2.6 msec to less than 1 msec.
• When installed with KO Propo's receiver unit, its bidirectional communication mode enables
• Battery mount position is lowered to lower the center of gravity for better cornering
• The all-new front section reduces the scrub radius by 1.5mm for better steering control.
• The one-piece MA-030 type kingpin/knuckle reduces weight and play.
• The 3-mm diameter front wheel shaft and bearing reduce friction loss.
• The new potentiometer is more durable, and it ensures precise steering control.
• IC tag mount position is raised by 0.5 mm, which means you can use even smaller front tires
• The EVO2 main board also supports existing EVO receiver units.
• The EVO2 main board also supports existing EVO receiver units.
• The initial lot product comes with a black version upper cover and upper arm holder as a 60th anniversary bonus.
