KYO32793SP

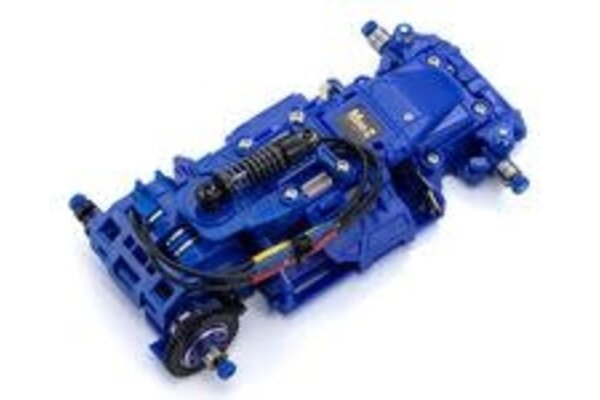

MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)

Limited color version MR-03EVO Chassis Set installed with the popular SP spec parts!

The existing MINI-Z has a installed receiver, servo and ESC in 1 controlled PCB unit. But the new MR-03EVO Chassis Set uses a separate receiver. By purchasing and installing a receiver unit depending on your transmitter, it allows for Kyosho (EX-6R/KT-531P), KO Propo (EX-2/EX-RR), Futaba (T7PX/T7XC/T4PM), and Flysky (Noble NB4) transmitters to be used. Further, by installing new CPU which control servo function only, it improves internal feedback of positioning control which is 11.2 times faster than the previous VE PRO models. The newly developed control program realizes the best ever steering feeling in MINI-Z history. The ESC also improves the response speed a maximum of 100 times faster than existing VE PRO models. The included KYOSHO SPEED HOUSE XSPEED 56 (5600KV) brushless motor features a one-piece aluminum case that provides efficient heat dissipation for superior cooling. Unlike previous chassis sets, you can also change to brushed motor mode using the I.C.S manager to install an optional brushed motor. (82083 I.C.S. Cable required. Sold separately.) The I.C.S manager also allows more precise setting adjustments to be made. New advanced performance features in the MR-03EVO take the MINI-Z racing experience to the next level! The SP edition is equipped with nickel plated hex screws, SP chassis, and an oil shock (MZW432) as standard. Also, the ball diff is specially finished with blue anodizing. Furthermore, new upper arms with various caster angles (1 deg./2 deg./3 deg.) are included allowing wider setting range. The Blue Limited version features blue plastic parts throughout the chassis that are nicely coodinated with the blue anodized motor and ball diff.

Remote gyro parameter setting: Throttle and steering gyro gain values are assigned to CH3 and CH4 signals, so you can adjust them while driving by assigning switches and dials of your transmitter.

Separate front upper suspension arm mount: Front suspension arms are mounted on a part that is separate from the upper cover, which enables quicker front tread conversion.

Compatible Rx Modules:
No. 82040 for Kyosho KT-18, EX-6, EX-6R and KO EX-2, EX-RR
No. 82041 for Kyosho KT-531P, KT432PT
No. 82042 for Futaba 10PX, 7PX, 7XC, 4PM
No. 82043 for KO Propo EX-NEXT, MC-8

Chassis Set Contents: Almost-factory-assembled MR-03N-MM2 chassis, equipped with brushless ESC unit, Front width conversion parts, Pinion Gears (6T, 7T, 8T, 9T), Front suspension adjustment spacers, Pinion gear removal tool, Wheel wrench

Required to Complete: Transmitter, Receiver Unit, 4 x AAA NiMH batteries for chassis, Batteries for transmitter, Mini-Z Auto Scale Collection (Body shell, wheels and tires)

Features:

• First MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.
• Includes new KYOSHO SPEED HOUSE XSPEED 56 brushless motor (5600KV).
• I.C.S manager features detailed steering and throttle parameter adjustment, as well as switching between brushless and brushed modes.
• Powered by independent CPUs for ESC and receiver, increased internal processing speed contributes to precision steering and throttle control.
• Equipped with ball bearings and blue anodized Ball Diff Set II.
• Newly designed separate receiver cover and front upper arm mount make tread adjustment easier.
• Compatible with optional parts for the MR-03 chassis.
• Including newly developed front upper arms with caster angles (1 deg., 2 deg. and 3 deg.)
• Special version equipped with a blue colored chassis and parts, which is only available in this chassis set.

Specifications:

• Scale: 1/27.6
• Length: 117.7mm
• Width: 65-76mm
• Height: 35mm
• Chassis Type: MR-03N-MM2
• Wheelbase: 94.0mm(L)
• Tread: Depending on wheel offset
• Weight: 135g
• 130 class brushless motor KYOSHO SPEED HOUSE / XSPEED 56 (5600KV)
• Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
