KYO32334R

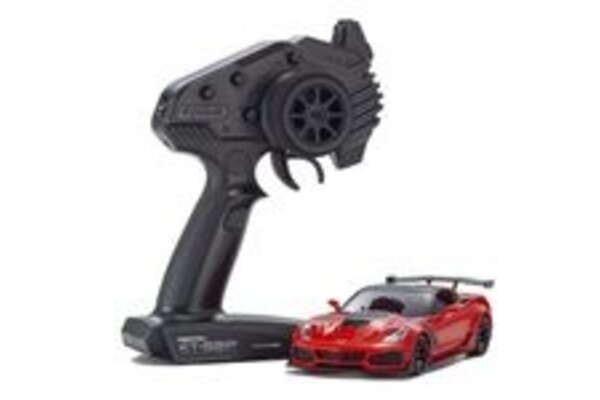

Mini-Z RWD Series Readyset, Chevrolet Corvette ZR1, Torch Red

The MINI-Z RWD MR-03 series replaces the MR-03 Sports 2 and is positioned slightly above the predecessor. Combined with the KT-531P transmitter and full ball bearing specifications, the MINI-Z RWD provides users with more values at the same price range. The KT-531P transmitter features soft foam steering wheel, which will give you a higher driving pleasure, and the transmitter is equipped with the throttle trim control knob, which was omitted from the KT-19. The RX unit is equipped with expansion ports for gyro unit (MZW431: optional) and light unit (MZW429R: standard for Readyset). The gyro effect can be adjusted by turning the small volume on the RX board, and the head light flashing speed can be remote controlled from the transmitter.

Ready Set Contents:

• Factory-assembled chassis equipped with KT-531P compatible Rx-ESC unit
• Painted and marked plastic body shell
• Tread width conversion parts
• Pinion Gears (6T, 7T, 8T, 9T)
• Front suspension adjustment spacers
• Pinion gear removal tool
• Spare wheel nuts
• Wheel wrench
• Wheels and tires

Required to Complete:

• 8 x AAA batteries

Technical Details

• Scale: 1/27.6
• Length: 168.0mm; Width: 79.0mm; Height: 46.5mm
• Chassis Type: MR-03W-MM
• Wheelbase: 102.0mm
• Tread (F): 65.5mm; Tread (R): 65.0mm
• Weight: 130g
• 130 class motor
• Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
• Tire Diameter (F/R): 25.0mm
• Tire Width (F): 8.5mm; Tire Width (R): 11.0mm
• Transmitter: included (KT-531P)
• Top speed: approx. 17km/h
• Runtime: approx. 50min

Features:

• KT-531P transmitter features steering trim, throttle trim, steering D/R, light flashing speed
• Soft foam steering wheel ensures delicate non-slip steering control.
• Full ball bearing specifications
• MR-03 Compatible chassis components
• Almost all optional parts for MR-03 and MR-03 Sports can be used
• Gyro socket and adjustment volume equipped.
• LED light unit as standard equipment.
• Light flashing speed control from the TX when optional light unit is installed
