KYO32180R

MINI-Z AWD MA-030EVO Red Chassis Set (Limited edition)
A new generation of MINI-Z AWD with separable RX unit design and improved left-right weight distribution!
Limited production quantity!
Red Limited version has been added to the popular MA-030EVO Chassis Set!

The separate receiver unit pioneered on the MR-03EVO is now included in the new AWD model MA-030EVO, based on the FWD MA-03F chassis. The MINI-Z was originally designed with an integrated receiver, servo and speed controller, however on the MR-030EVO the receiver was designed to be purchased and installed as a separate unit to allow the model to be used with other makes of transmitter such as KYOSHO (KT18/EX-6/EX-6R/KT-531P/KT-432PT), KO (EX-2/EX-RR/EX-NEXT/MC-8), Futaba (T10PX/T7PX/T7XC/T4PM/T4PM Plus), and Flysky (Noble NB4). In addition, the highest AWD series spec MA-020VE PRO included a 3-stage steering servo unit, but the new MA-030EVO includes the even higher spec 5-stage gear type from the MR-03. Also, a special CPU for servo control improves the control speed of positioning feedback and the updated control program delivers the best steering feel of any AWD model through improved responsiveness and linear response to driver control. The one-piece heatsink and aluminum case on the KYOSHO SPEED HOUSE XSPEED 85 (8500KV) brushless motor keeps it cool for optimal performance. The I.C.S. manager allows precision setting adjustments and also the switch to a brushed motor, which was not possible with previous chassis sets. Switch between drift and grip driving styles to experience the ultimate in AWD driving performance.

Includes:

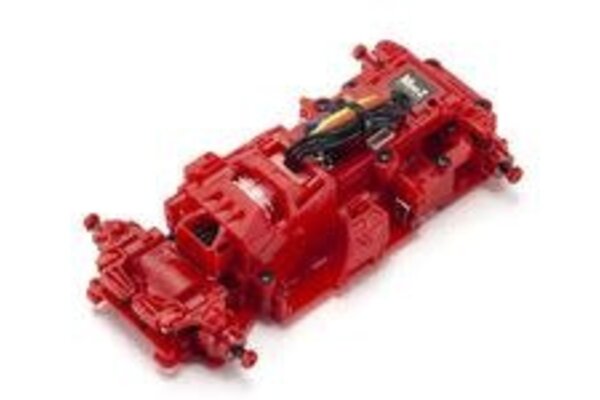

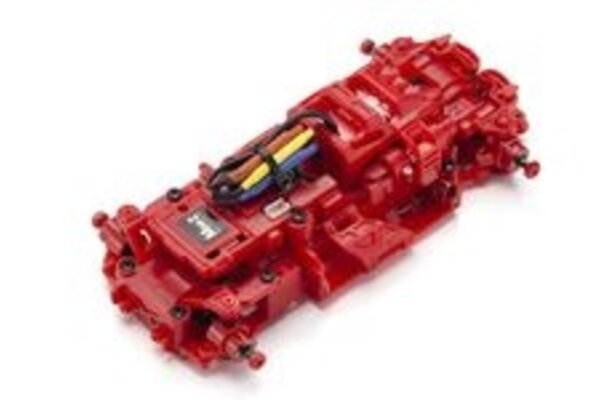

Factory-assembled chassis equipped with EVO main unit installed (Receiver is not included)
Pinion Gears (15T, 17T, 19T, 21T)

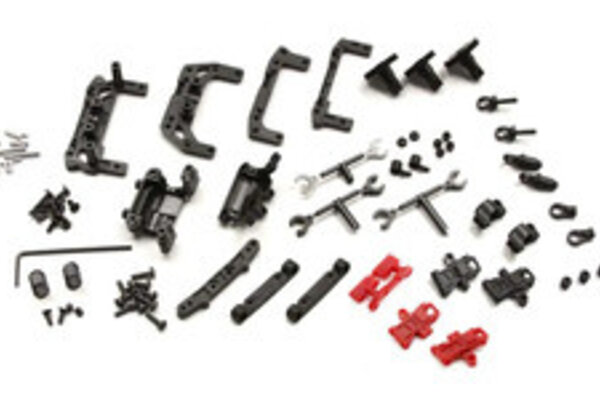

DWS conversion parts and Front width conversion parts
Pinion gear removal tool
Spare wheel nuts
Wheel wrench
Center shaft for L wheelbase
Wide rear suspension arms for DWS
swing shafts (4 x long)
Spur gears (27T, 29T, 31T)

Required to Complete:

8 x AAA batteries
Auto Scale Collection (body, wheels and tires)
Transmitter
MINI-Z EVO receiver unit compatible with the transmitter used

Features:

MA-030 AWD chassis is based on MINI-Z FWD MA-03F chassis.
Chassis set comes with separate ESC and receiver unit.

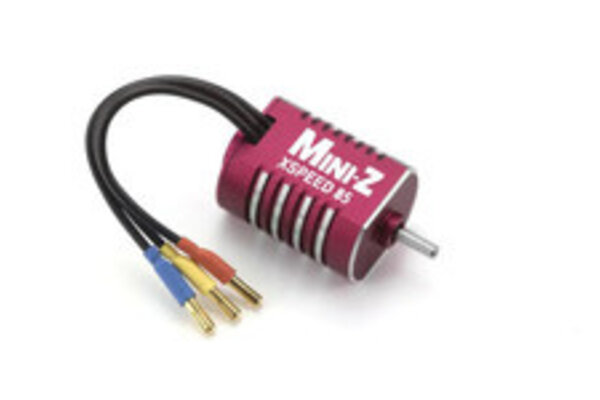

Includes KYOSHO SPEED HOUSE 85 brushless motor (KV8500).
Optional 82083 I.C.S manager enables precise setting control and use of either brushless or brushed motor.
Independent CPU control with increased processing speed delivers even more precise control.
Full ball bearing specifications reduces drive loss.
Includes rear double wishbone suspension.(Standard black color)
Compatible with L (94mm) and LL (98mm) wheelbases. Only LL (98mm) can be used with rear double wishbone suspension set.
Compatible with optional parts for the various MR-03F chassis models
Specifications:

Scale: 1/27.6
Length: 126.0mm; Width: 65.0 - 76.0mm (adjustable by wheel offset); Height: 36.0mm
Chassis Type: MA-030
Wheelbase: 94.0mm (only with strut rear suspension installed), 98.0mm (factory assembled)
Weight: 135g
Brushless 8500KV
Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5:1
Top speed: approx. 17km/h
