Designed to dominate, and built to bash, the Jambo XP utilizes the proven Dementor platform and adds a completely new body, wheel, and tire package.
With enough horsepower to pull wheelies on demand, yet maintain control, the Team Corally's Jambo XP 4WD 1/8 Scale Brushless Stunt Truck RTR is a vehicle with extreme stunt capabilities, yet unsurpassed reliability. Combining a short wheelbase with the capability of 6S LiPo power and a 2050KV brushless motor, you can dominate bash spots, skate parks or local streets.
The Jambo XP features an efficient all-metal four-wheel drivetrain, fully independent suspension with massive travel, and unique, durable bodyshell design, this is the ultimate electric 1/8 stunt truck for drivers looking for incredible top speeds, endless wheelies, and the strength and reliability to survive jumbo stunts and jumps!
The Jambo XP Monster Truck features a full suite of water-resistant electronics, so it's ready for driving in most any conditions. Not only is the ESC resistant to splashes of water and mud, but the steering servo and receiver are also protected from the elements by special water-resistant PCB coatings. The receiver is further protected by a sealed enclosure to protect against dust, mud, and moisture. Of course, aerospace-quality rubber sealed ball bearings are standard on the Jambo XP, meaning you can drive virtually anywhere and in most any conditions
(Please note: no RC vehicle should be driven or submerged in water or mud. Take care when driving in extreme conditions, and proper maintenance such as cleaning and lubricating should take place after driving in mud, water or near salt water.)

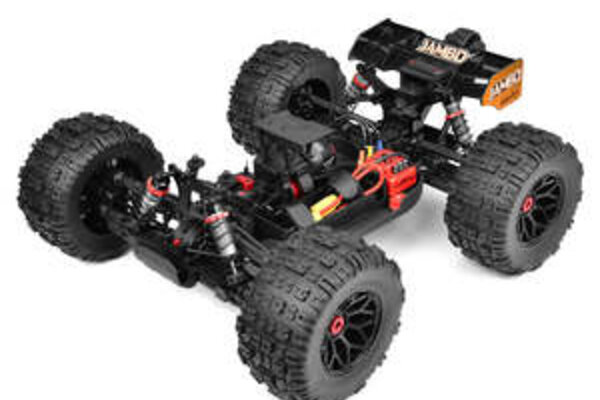

Inspired by top-tier professional racing machines in the RC industry, the Jambo XP utilizes an aluminium pan-style chassis for the most efficient and durable chassis layout. With an optimized forward weight bias, the heaviest drivetrain components and other systems are kept as close to the front as possible. Robust, triangulated front and rear chassis braces provide additional rigidity that allows the aluminium big bore shocks and HiCC8 composite suspension parts to perform without the negative effects of chassis plate flex. The reinforced composite chassis side guards have integrated front brackets to provide additional protection for the polycarbonate body and electronics. The exclusive Team Corally's exclusive SPL system secures shock spring perches and prevents spring misalignment during extreme compression/rebound while the innovative RSP Sway Bar system keeps the Jambo planted in corners and ensures consistent handling on all surfaces.
With a Team Corally Kuron 2050KV 4-pole motor mounted on a torsion-resistant aluminium 2-piece sliding mount, you can be confident of attaining maximum speeds for big-air stunts! Speeds of over 110 km/h (60+ mph) are easy - just fit the appropriate battery! The versatile Team Corally Kuron 2050KV motor can utilize 4S-6S LiPo batteries to optimize performance on any surface or in any conditions!
As usually seen only on premium competition-level RC vehicles, the Jambo is fitted with front, center, and rear silicone fluid-filled and sealed limited-slip differentials that ensure the full amount of power from the 2050KV Kuron motor gets to the ground. With easy removal and maintenance, you can even alter each differential individually to fine-tune the amount of traction at either end of the truck! Inside, you'll find a complete set of metal gears and outdrive cups that connect to steel central driveshafts. The front end is driven by CVD driveshafts, while the rear is driven by robust metal dogbones, with the entire drivetrain supported by aerospace-quality 8x16x5mm rubber sealed ball bearings for maximum efficiency and durability.
The critical center diff used on the Jambo XP features an aluminium alloy case and durable, steel spur gear for unsurpassed performance and reliability.
The "mono-tire" wheelie bar helps keep the Jambo stable when the front tires want to reach for the sky during awe-inspiring wheelies.
The innovative battery mount allows the Jambo XP to conveniently secure most any surface 4S-6S LiPo to protect your battery investment while providing optimum weight distribution.
The Jambo XP features a robust pivot ball-style front suspension utilizing steel pivots and steering turnbuckles in addition to tough composite suspension arms. The rear suspension features composite outboard hubs and one-piece composite upper suspension links. At each corner, durable HiCC8 composite suspension arms and threaded, adjustable 16mm big bore oil-filled shock absorbers produce plush, compliant handling.
The Jambo is fully controlled by the ergonomically designed pistol-grip style transmitter, which features the latest 2.4GHz technology for interference-free control at a distance of 300m.
Features:
- 100+ km/h (60+ mph) possible
- Team Corally TOROX 185 ESC 4-6S with LiPo low-voltage protection (programmable)
- Team Corally Kuron 2050kV 4-pole brushless motor (4-6S operation)
- Varioprop CRHV-7225 High Torque, High Voltage Digital Servo with Metal Gears and 25Kg Torque
- Ergonomic Varioprop S2R transmitter, with interference-free 2.4GHz technology
- Separate splash-proof and dust proof electronic box with transponder mount
- Adjustable battery holder for all common LiPo batteries
- Full set of aerospace-quality, rubber-sealed ball bearings
- Hardened steel spur gear and motor pinion
- Three sealed metal differentials individually filled with silicone fluid
- Aluminum/Steel center differential
- Quick and convenient diff access
- 2-piece aluminium motor mount with composite gear cover
- Extra Surface-Hardened Steel Front CVD Joints
- Aluminium 17 mm drive hexes
- Oil-filled threaded 16 mm aluminium Big Bore shocks
- Exclusive shock spring perch locking system
- CNC aluminium shock towers, 5mm rear / 4mm front
- Alloy Front Upper Arm Stiffener Plate
- Independent Pivot Ball front suspension
- Team Corally RSP front and rear anti-roll bar system
- Aluminium chassis plate
- Heavy Duty front and rear chassis braces
