HWI38020505

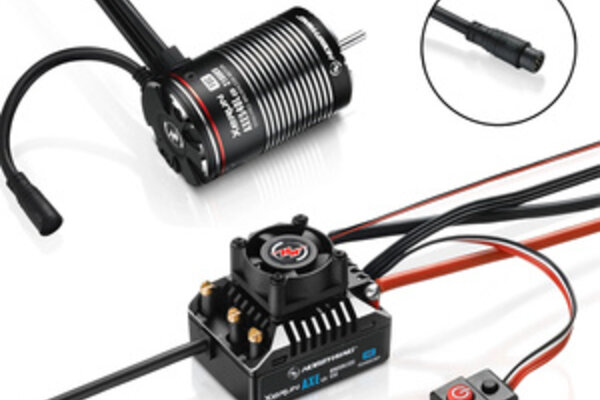

XeRun Combo AXE540L R2 ESC - 2300kv - FOC System
What's in the box
1x AXE R2 FOC ESC
1x AXE 540L FOC motor
XERUN AXE R2 FOC ESC Specification
p/n 30112102
Cont./Peak Current 80A/480A
Input Voltage 2-3S LiPo, 6-9S NiMh
BEC Output 6V/7.4V Switchable, Continuous Current of 6A (Switch-mode)
Input wires Red-Black-12AWG-200mm
Input connector XT60
Programming Port Built-in Bluetooth
Firmware iOS or Android smartphone (installed with the HW LINK app)
Size / Weight 47.4(L)x36.2(W)x26.5(H)mm/ 108g (Included input wires)
XERUN AXE 540L Motor-Specification
1/10-1/8th FOC brushless motor (Patented)
Waterproof,
Motor Diameter: 36.0mm(1.42in)
Length (mm): 57.8mm(2.28in)
Shaft Diameter: 3.175(0.125in)
Pole: 4
Front Bearing: D5*D13*t4(695DD)
Rear Bearing: D6*D15*t5(696DD)
540L FOC motor 2300kv p/n 30401257
Motor Length 49.8 mm
LiPo 2-3S
No-load Current (A) 2.5
Weight (g) 185g
Features
Word's First FOC brushless system for Rock Crawler. Field-Oriented Control for Super Linearity & High Torque & Extreme Silence.
The chip-type magnetic encoder inside the motor guarantees consistency between the three phases, and always outputs pure and precise signals indicating the rotor position.
The waterproof and dust-proof design (*IP67 standards) allows the AXE brushless power system to be used in all weather & track conditions without risk of damage from water or dust. Damage to the vehicle caused by water, mud, or conditions should be monitored closely when running in muddy, wet, or adverse conditions.
Intelligent torque output & speed closed-loop control for easy control, and consistent motor RPM under all loads.
Adjustable drag brake & drag brake rate control with maximum drag brake of up to 200% (that's near twice the drag brake standard brushless power systems can provide)
Unprecedented parking capacity on slopes, with no jerky stops.
The innovative built-in Bluetooth connectivity. allows users to read ESC data or update ESC firmware via a smartphone (installed with the HW LINK app).
The motor, with 4 poles & 12 magnets, featuring Hobbywing's "staggered pole" patent, has zero cogging effect & torque ripple. It works smoothly at low speeds. This greatly improves the maneuverability of rock crawlers at low speeds.
The new sensor harness, which features a plug-and-screw design, has a silicone O-ring inside. The O-ring not only provides a firm connection between motor and ESC, but solves the "waterproof" challenge for sensor ports.
The advanced and secure electronic switch features a waterproof, dust-proof, and shock-resistant design.
Multiple protections: low-voltage cutoff, thermal, fail-safe (throttle signal loss), motor lock-up, and overcurrent.
IMPORTANT Note:
Xerun AXE series is a closed-system: Due to its advanced technology, HOBBYWING Xerun AXE ESC works exclusively with Xerun AXE brushless motor.
