  • Hot Racing HRASTE256 Hot Racing Traxxas 32P Steel Pinion & Spur Gear Set (Purple) (18T/56T)
  • Hot Racing HRASTE256 Hot Racing Traxxas 32P Steel Pinion & Spur Gear Set (Purple) (18T/56T)

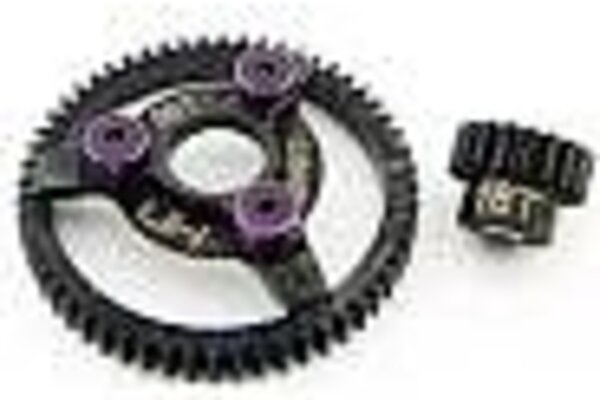

Hot Racing HRASTE256 Hot Racing Traxxas 32P Steel Pinion & Spur Gear Set (Purple) (18T/56T)

SKU: HRASTE256
$24.99
Excl. tax

HRASTE256

The rating of this product is 0 out of 5

(0)
On backorder

This is an optional Hot Racing 32 Pitch Steel Pinion and Spur Gear Set for use with the following Traxxas 2WD models: Bandit, Rustler, Slash and Stampede.

Features:

  • CNC machined and lightened hardened steel construction
  • Replaces stock nylon spur gear
  • Rugged 0.8 Module/32pitch teeth for total reliability on brushless power
  • Aluminum pinion sleeve to allow for either 1/8 inch or 5mm motor shafts
  • Black oxide coated gear for durability and corrosion resistance
  • Purple anodized countersunk aluminum washers
  • High strength hardware

Specifications:
Number of Teeth:
18T/56T
Gear Pitch: 32 pitch (0.8 module)
Mounting Holes: 3
Tooth Face width: ~5mm

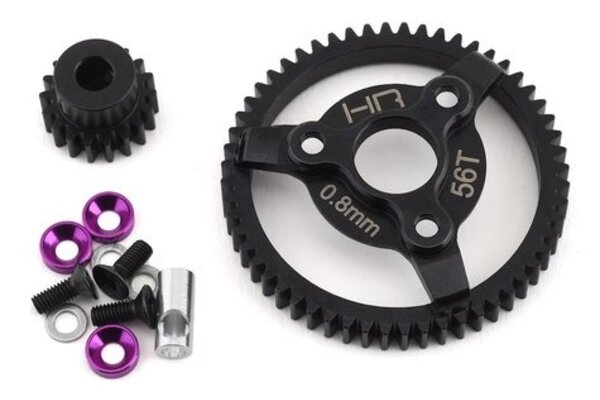

Includes:

  • (1) 18 tooth 32 pitch (0.8 Mod) pinion gear
  • (1) 56 tooth 32 pitch (0.8 Mod) spur gear
  • (3) mounting screws
  • (3) purple anodized countersunk washers
  • (1) pinion adapter sleeve
  • (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur backing plate)

NOTES:

  • Consider using Hot Racing motor lock plate HRATE18L06 for secure motor mounting
  • Motor should no way exceed 180F. ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.
