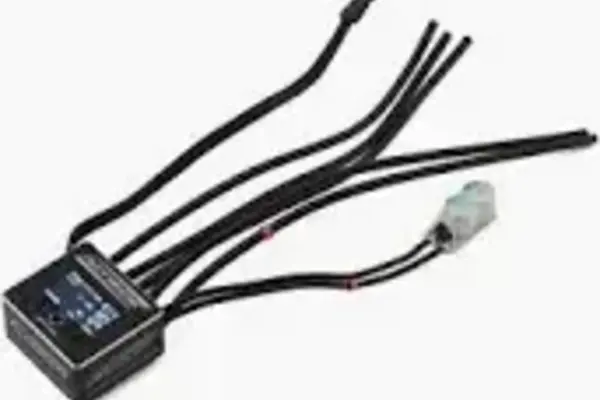

Elceram Nitride 1/10 Brushless ESC w/LCD Display
The Elceram Nitride 1/10 Brushless ESC introduces a groundbreaking feature in RC motor control – an LCD color display. This innovation allows users to conveniently configure all parameters and monitor data directly on the ESC, eliminating the need for an external programming card or mobile application. The Nitride is more than an ESC; it's a performance masterpiece designed to dominate the racing circuit.
Navigating the racing experience is effortlessly streamlined with the user-friendly interface of this ESC. It boasts a remarkably intuitive design driven by three easily accessible buttons for swift adjustments. A quick glance reveals a wealth of crucial race parameters on the home screen, including real-time battery voltage, ESC and motor temperatures, profile indicators, and a sensor cable diagnostic monitor. Upon scrolling through the post-race data, you have access to a plethora of crucial information, including temperature, voltage, and motor RPM graphs, and much more. This seamless integration of information provides racers with a simple, rapid, and precise tuning process, allowing them to identify and optimize essential data at a glance for an unparalleled racing experience.
Navigating the tuning realm becomes a breeze with this ESC, thanks to its color LCD screen and user-friendly interface. Quick tuning adjustments are seamlessly executed without the need for a program card – everything is accessible directly from the ESC. Offering a comprehensive array of essential tuning parameters, this system stands out for its finely tunable aspects, providing a level of customization beyond standard preset profiles. Achieving optimal performance has never been more intuitive and personalized.
The Nitride Electronic Speed Controller (ESC) stands as a pinnacle of performance in the realm of 1/10 racing, showcasing its exceptional adaptability across diverse applications such as dirt oval racing to the precision-demanding Formula 1 circuit. With an unparalleled combination of capability, tuneability, and reliability, the Nitride ESC empowers users to finely tune their racing experience, providing an immersive and superior feel on the track. This cutting-edge technology allows racers to meticulously refine their setups, unlocking the full potential for true racing excellence.
Scale Size | 1:10 Scale |
---|---|
Type | Brushless Sensored |
Input Voltage | 2S LiPo |
BEC Voltage | 7.4V (Fixed) |
Current | |
Continuous | 180A |
Peak | 1500A |
Motor Limit | 4.5T |
Programmable | Yes |
Display Resolution | 160x80 |
Dimensions | 1.50x1.35x0.96in (38.3x34.3x24.5mm) |
Weight | 3.17oz (90g) |
Roar Approved | Yes |
