CEG8993

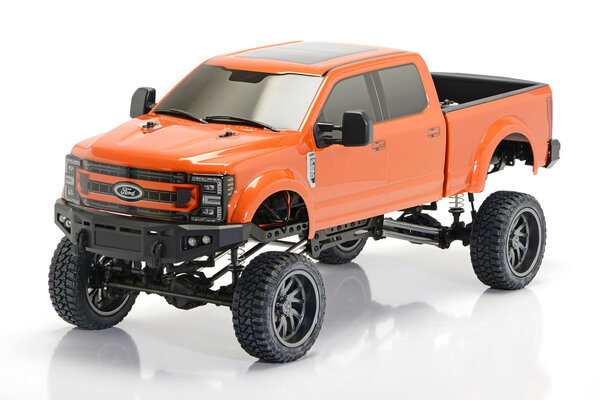

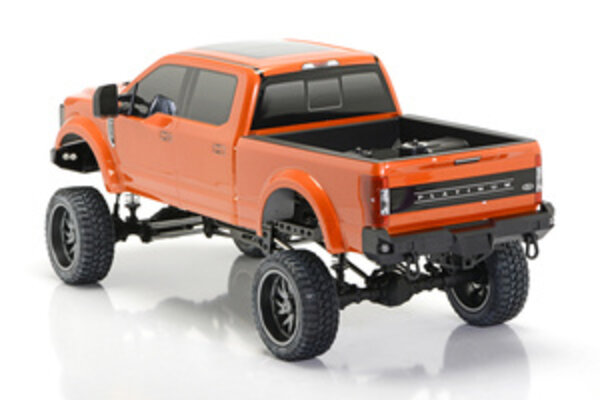

Ford F250 1/10 4WD KG1 Edition Lifted Truck, Burnt Copper - RTR

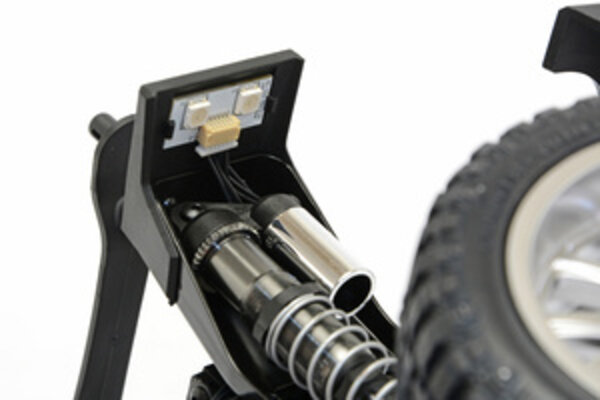

RGB LED Light: Standard Under Fender Multicolor RGB LED.

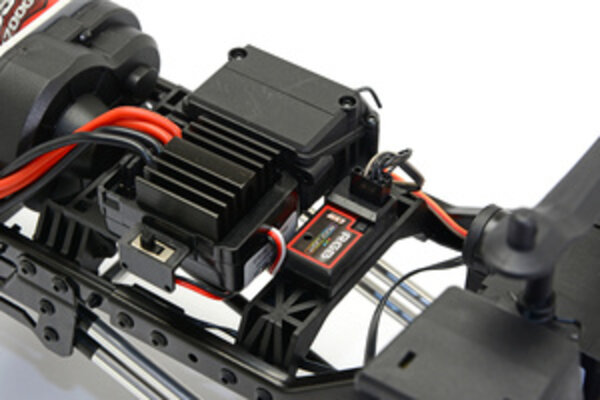

ESC: 40A WP-1040-Brushed (By HobbyWing)

• Water-Proof and Dust-Proof for All Weather.
• Built-In Capacitor Module.
• Automatic Throttle Range Calibration.
• Low Voltage Cut-Off Protection for Li-Po and NiMH Battery.
• Over-Heat Protection and Throttle Signal Loss Protection.

Motor: RS-540 High Torque Brushed Motor.

Servo: 12Kg Metal Gear Servo (By Savox)

• 4.8V - 0.26 sec/60 10.0 kg-cm.
• 6.0V - 0.23 sec/60 12.0 kg-cm.
• 25T Horn Gear Spline.

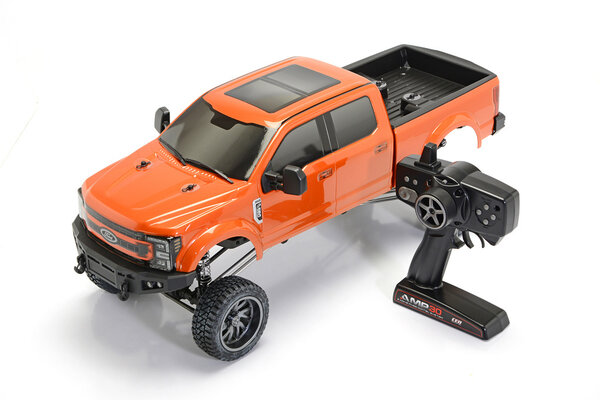

Radio System: Pistol-Grip Mod-3S 3 Channel Transmitter and Receiver

• Digital Trimming.
• Steering Dual-Rate (ST D/R) Adjustment.
• End Point Adjustment (EPA).
• Build in Failsafe.
• Frequencies: 2.4GHz
• Power Supply: 4
• AA Alkaline (Not Included).

Body: Official Licensed by Ford Motor

• F-250 Super Duty.
• Scale Realistic Body Details.

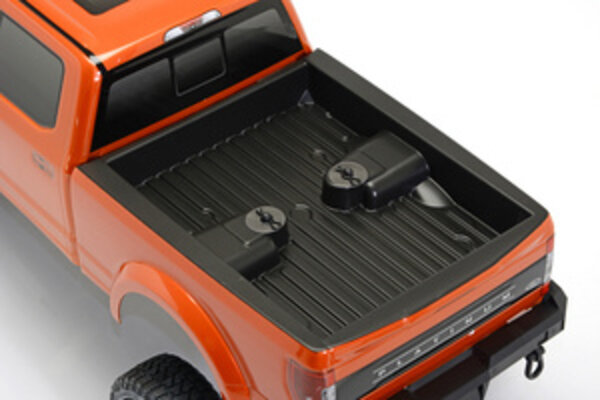

• Black Bed Liner Coating.

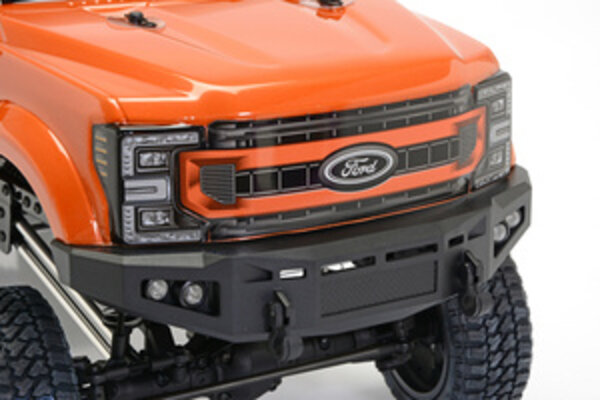

• hard Molded Front & Rear bumpers with build in 3mm LED housing

Chassis:

• Steel Frame Rails.
• CMS (Chassis Mounted Servo) Chassis Design.
• Stamped Steel Shock Hoops.
• Steel Skid Plate.
• Full Precision Ball Bearing Supported.
• Adjustable Turnbuckles.
• High Torque Servo Saver Horn.
• Easy Access Battery Tray.
• Battery Tray Size 146 x 50 x 25mm.

Suspension:

• Custom Lifted Suspension Design.
• 110mm Big Bore Oil Filled Adjustable Coil Over Shocks.
• 12mm over size shock body with 3mm Hardened Steel Polished Shaft.
• Harden Steel Steering Drag Link.
• CNC Machined 6mm Aluminum Linkage.
• Front / Rear Sway Bar.

Drivetrain:

• Full Metal Transmission Gears.
• 4 Wheels Drive.
• Center Shaft Drivetrain for More Power Transferred to the Wheels.
• Hight Efficient Transmission System.
• Wide Range Easy Changeable Gear Box Design.
• Sealed Transmission Case.
• Sealed Axle Housing.
• Metal Planetary Gear Type Differential.

Gear Ratio:

• Hi / Speed Ratio 1.56:1
• Hi / Torque Ratio 2.8:1
• Spur / Pinion Gear 32p85/32p12T
• Ring & Pinion Gear30/15T 2:1

Wheel: Official Licensed by KG1 Forged

• KF004 Vile Wheel.
• 66.50mm x 37.5mm.

Tires: Official Licensed Fury Tires

• Low Profile Country Hunter tires.
• 65 x 100.50 x 38.50 mm.

Specifications:

• Length: 25.6 inches (650mm)
• Width: 10.04 inches (255mm)
• Wheelbase: 16.02 inches (407mm)
• Ground Clearance: 3.54inch (90mm)
• Weight: 5.51 lb. 2.5 kg
• Recommended Battery: 2S 5000mAh LiPo Battery with dean connector
